The Digital Shift in Tire Mold Manufacturing: How 3D Printing is cutting lead times by 80%
How much time is your production line losing to traditional molding constraints? Tire mold manufacturing has officially entered the era of "High Precision + Fast Change," but traditional workflows often struggle to keep pace with these modern demands.
As automakers accelerate product iterations for the modern EV market, tire manufacturers are facing compressed development cycles and intense delivery pressure. Today, we explore how a digital-first approach to tire master molds is transforming these challenges into competitive advantages.
The Industry at a Crossroads: Navigating Traditional Barriers

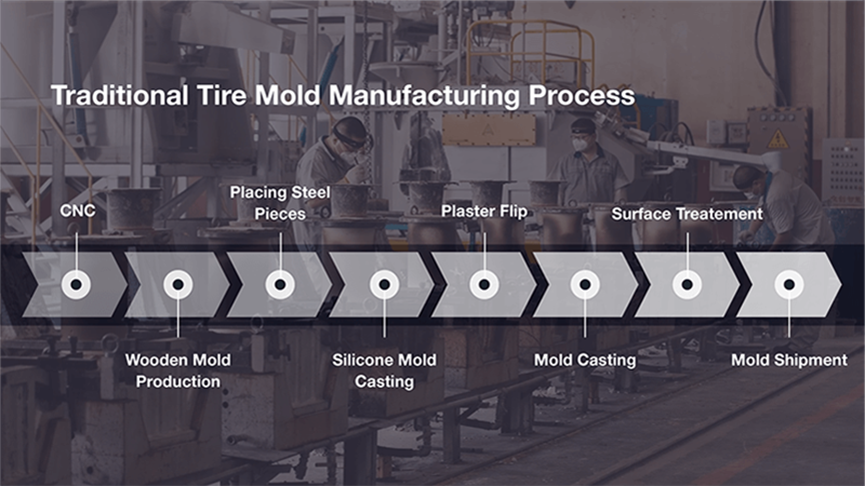

For decades, the industry relied on a CNC and SLM hybrid process. While functional, this traditional workflow is inherently complex, involving multiple steps such as programming, steel insert insertion, and painstaking manual modifications. The consequences for the manufacturer are often:
• Lengthy Lead Times: A typical production cycle for a single master mold can take between 2–3 weeks (336–504 hours).
• High Labor Costs: The process is highly dependent on operator experience, leading to higher labor expenses and a significant risk of error.
• Lack of Flexibility: As the market shifts toward "small batches and diverse products," fragmented demand often results in costly inventory backlogs.

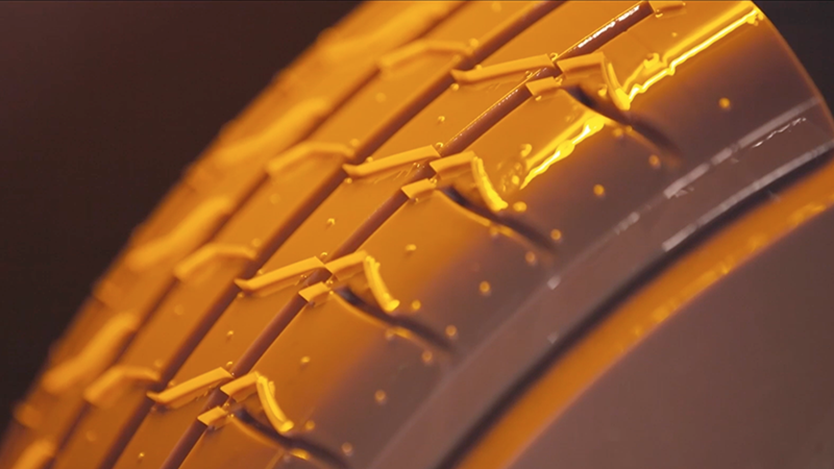

• Stringent Precision Requirements: Tread patterns are becoming increasingly sophisticated, requiring a level of geometric accuracy that traditional methods struggle to provide consistently.
The UnionTech Solution: A One-Stop Digital Ecosystem
At UnionTech, we have engineered a complete, one-stop printing ecosystem designed to eliminate these bottlenecks. By integrating purpose-built hardware with proprietary materials and smart software, we provide a seamless path from digital file to finished mold.
1. Purpose-Built Hardware: The RA Series
The RA series is specifically designed for the unique rigors of the tire mold industry. To ensure our technology scales with your specific goals, we offer two specialized platforms:
• The RA600: Intended for agile R&D and customization. It is ideal for small-batch production and the rapid validation of complex tread patterns.

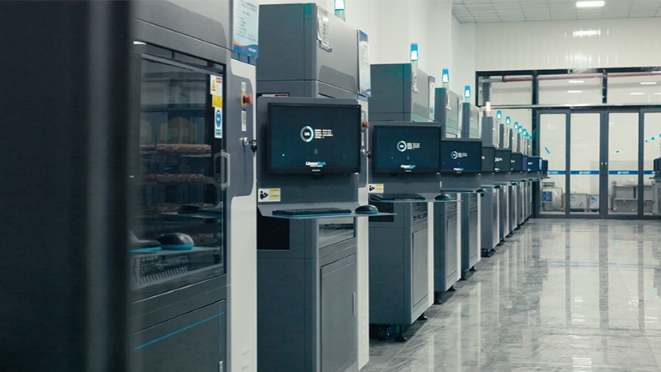

• The RA900: Serving as a production-line platform, this system supports large-scale manufacturing and centralized scheduling, enabling companies to build high-efficiency digital workshops.
2. Specialized Materials: Xtyre Series Resins

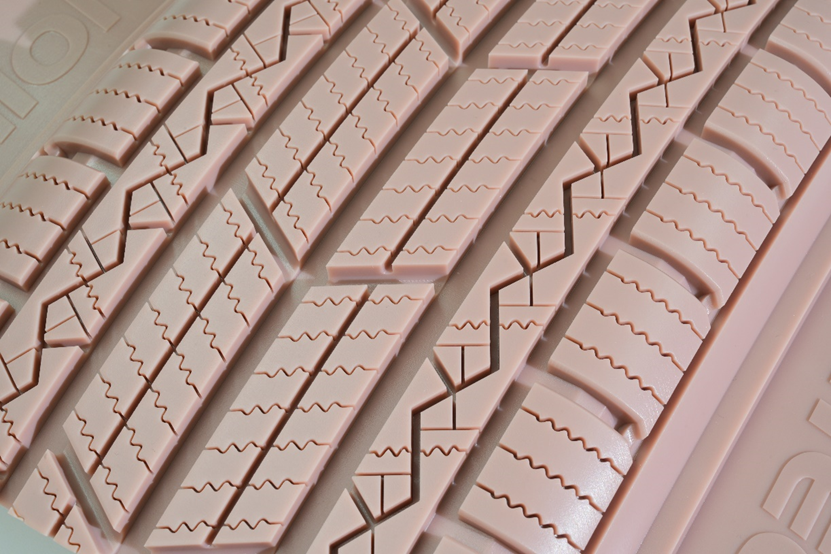

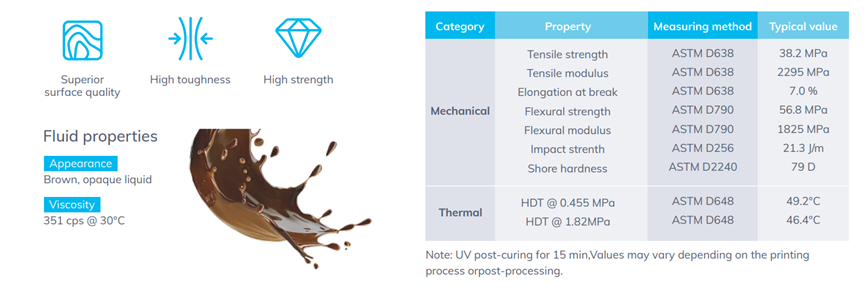

The foundation of high precision lies in the material. UnionTech’s proprietary Xtyre series photosensitive resins were developed specifically for tire master mold applications. These resins deliver ultra-high precision, faithful detail reproduction, and minimal groove dimensional deviation.
3. Smart Software: UT ONE
Hardware and material are unified by UT ONE, our smart software platform that optimizes the entire printing process. By enabling automated sample placement and intelligent scheduling, UT ONE significantly lowers operating complexity while improving overall production line efficiency.
Technical Precision: Setting New Industry Standards
The impact of this ecosystem is most visible in the data. When compared to traditional machining, UnionTech’s 3D printing solution offers superior accuracy across every key technical item:
• Surface Roughness: Achieves a surface roughness of Ra ≤ 3.5μm, meeting and exceeding industry standards.
• Tread Point Deviation: While traditional data shows a point deviation within ±0.05mm, our 3D printing data achieves a precision of ±0.03mm
• Tread Roundness: We deliver a roundness deviation of 0.03mm in any cross-section in the circumferential direction.
• Steel Size Deviation: The thickness deviation of the steel piece can be precisely controlled at 0.03mm.
Simplified Processes and "Zero Inventory" Manufacturing
One of the most significant shifts is the move toward "Zero Inventory" manufacturing. By supporting on-demand printing directly from digital files, manufacturers can fulfill small-batch, high-variety orders without the cost pressure of backlogs.
Furthermore, the process is streamlined by:
• Eliminating Steel Inserts: One-step printing eliminates the risk of misaligned or missing inserts.
• Reducing Manual Finishing: The precision of the print eliminates multiple manual steps, including trimming and deburring.
Case Study: LiChond Mould’s 80% Efficiency Boost

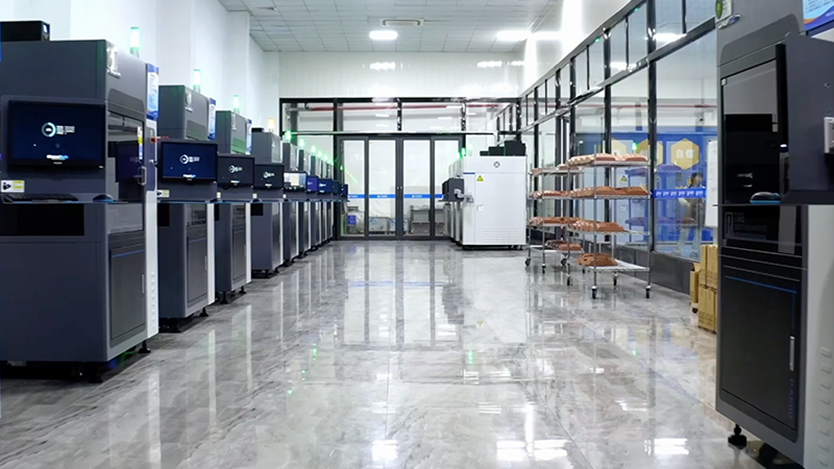

The impact of this technology is perhaps best illustrated by our partnership with Shandong LiChond Mould Co., Ltd. They deployed 18 units of the RA600 to manage the R&D and validation of small batches of complex tire molds.
By upgrading to this digital process, LiChond Mould reduced their master mold production time from the traditional 21 days to just 2–4 days. This resulted in a manufacturing efficiency improvement of over 80%, drastically reducing rework rates and giving them a decisive competitive edge in the global market.
Building the Digital Future Together
As tire mold manufacturing continues to evolve, the ability to deliver high-precision products at rapid speeds will be the primary differentiator for successful manufacturers. With over 130 units deployed worldwide, UnionTech is committed to providing the comprehensive training, maintenance, and technical support required to help manufacturers advance in their digital transformation.
